Two-piece Hirth Coupling

2023-11-20
Product Usage Example
Share:

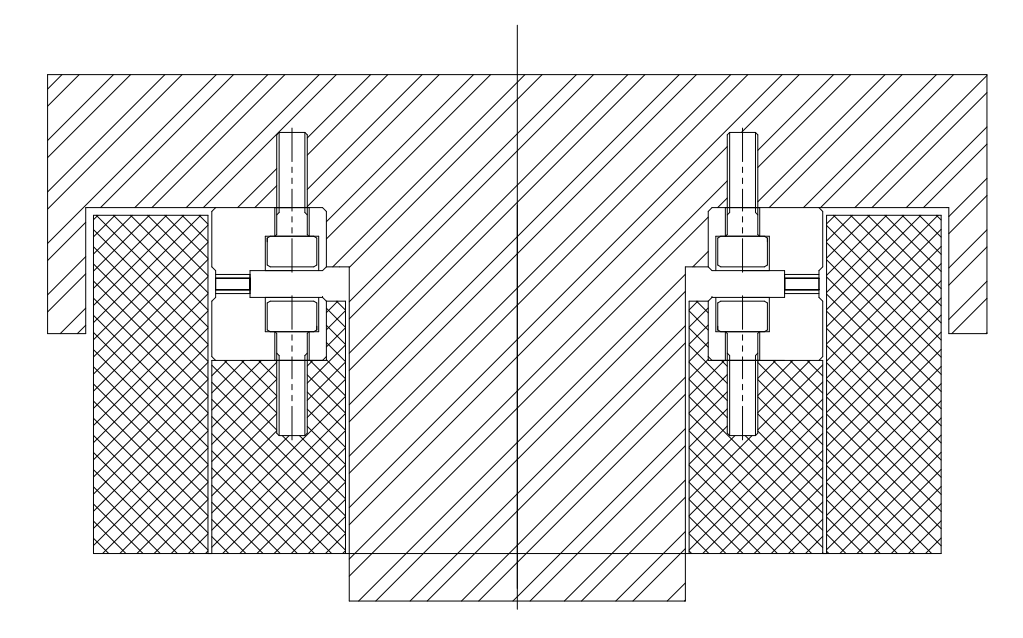

1.In the normal state, the Hirth Coupling are engaged with each other.

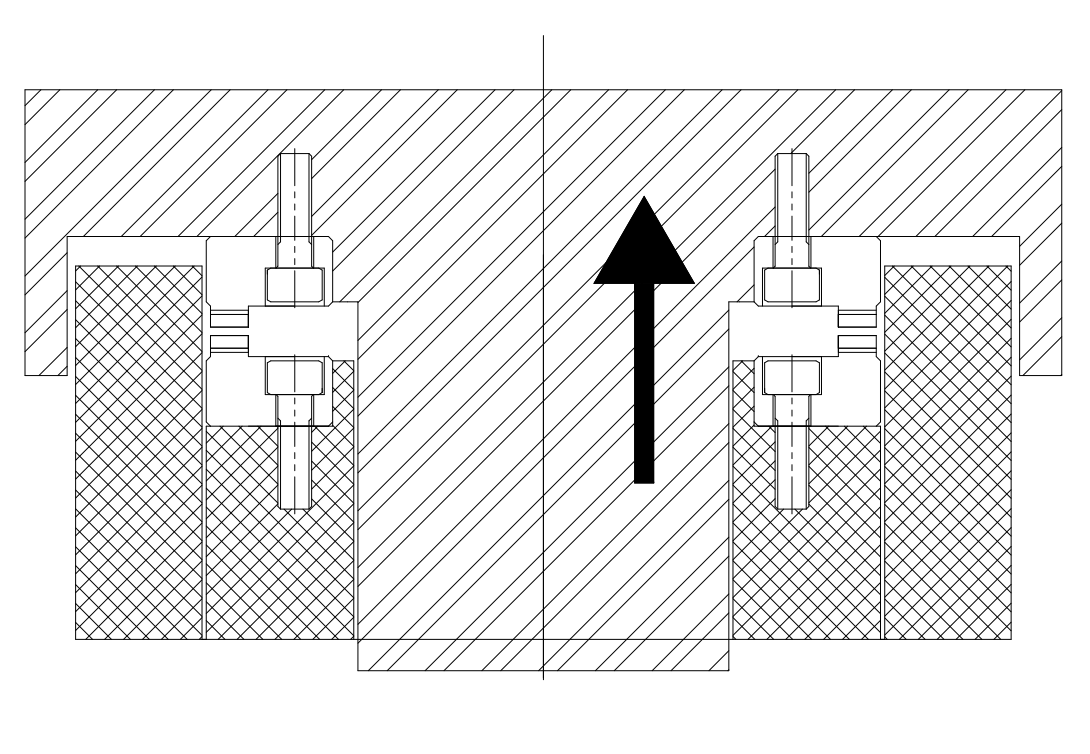

2.When activated, the active disengagement tooth is disengaged.

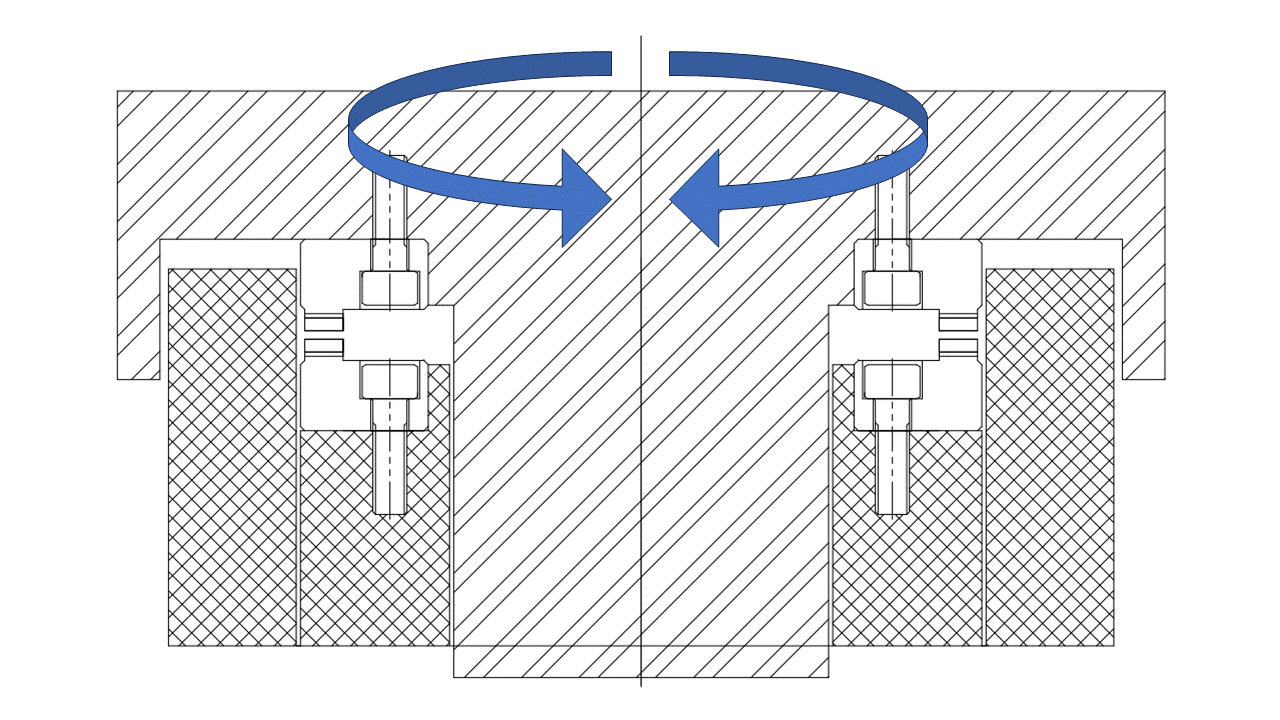

3.After the active disengagement tooth is disengaged, it is rotated to the specified angle.

投影片1

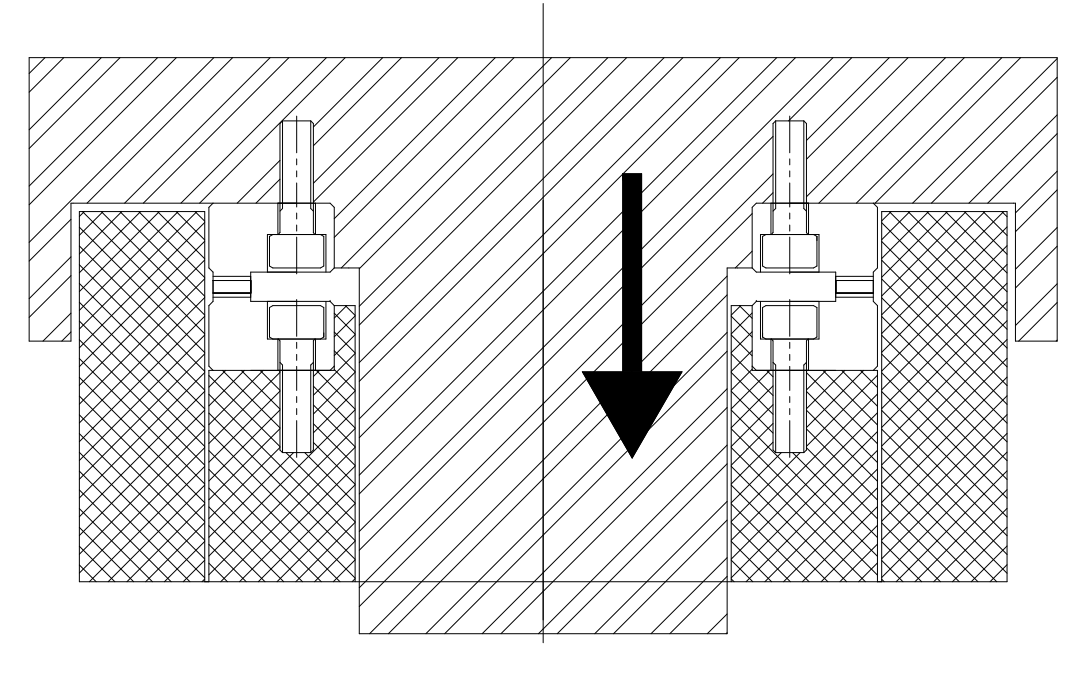

4.After rotating to the specified angle, the Hirth Coupling tooth reengages.
